Pair of Ball Bearing Runners 60Kg with Rail Lock

50HL-01   50mm heavy duty locking slides -

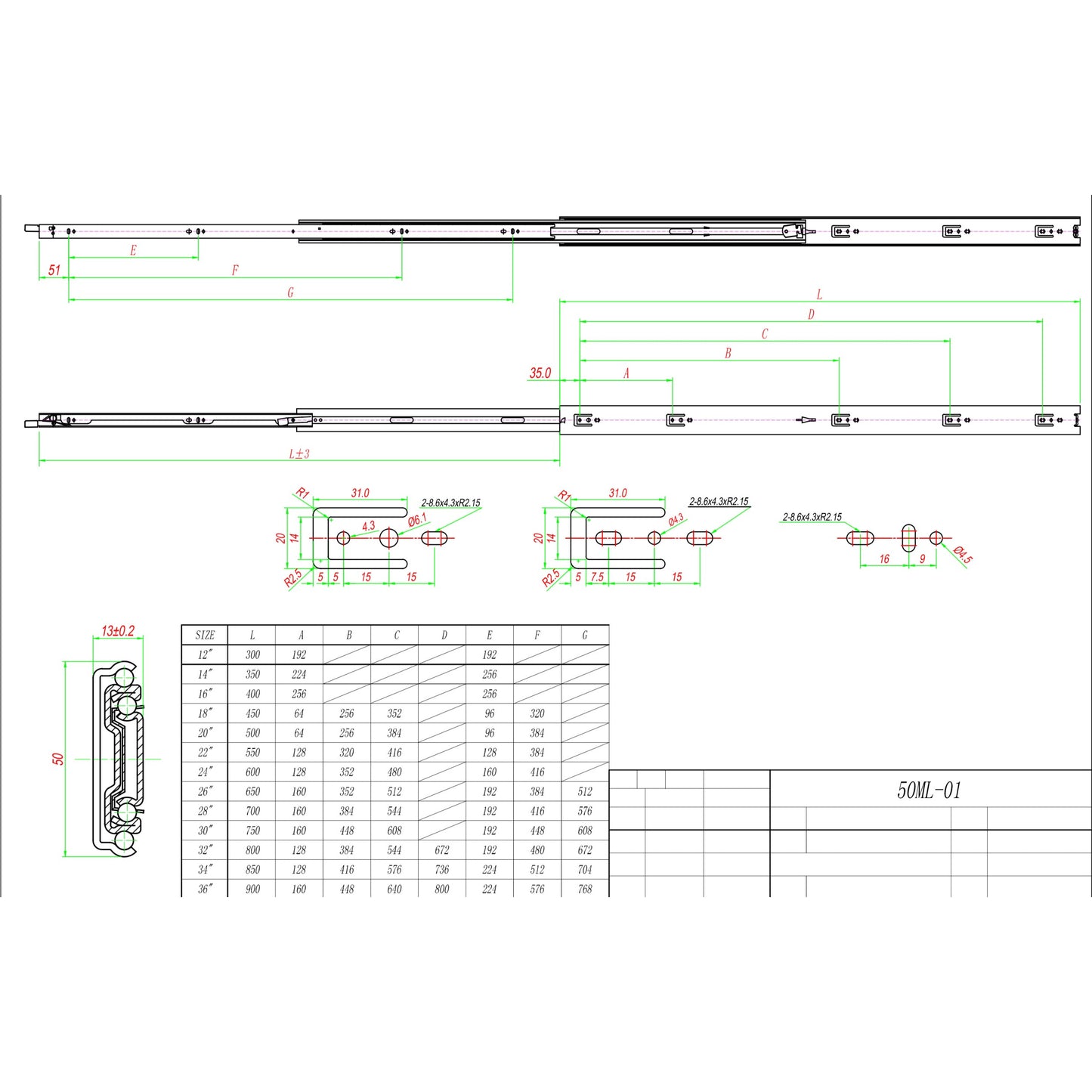

 For specifications and installation suggestions click here

• Materials : cold rolled steel
• Metal thickness :1.8/1.5/1.5mm
• With lock-in and lock-out fuction
• Load rating: 60kgs / 450mm standard.
• Full extension with ball bearing, side mount fixing.
  The lock lever extents approx 30mm beyond the closed size.
• Size : 14 " (250mm ) - 32" (800mm )
• Application: vehicle,ATM,ambulance,fire engine,server and tool box ect

• Features:
• Positive lock.Lock-out function ensures drawer remains stable while accessing contents,Lock-in function keeps vehicular compartments secure during transit, preventing drawer roll-out under harsh conditions such as vibration or impact. The mechanism resists disengaging when subjected to side-to side racking. Lock release latch located at the front of the slide controls both lock-in and lock-out functions. Lock release latch is coated with a safety blue finish in a durable soft plastic. The latch is highly visible, yet also easily identified by touch. This allows users to quickly locate the latch, even when reaching around large trays or drawers.
